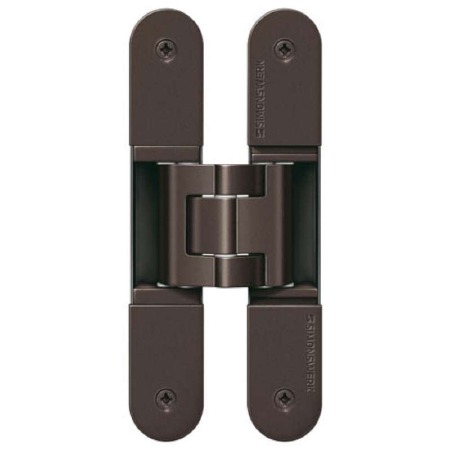

Tectus 340 3D Concealed Hinge Dark Bronze
Product Code: HWHI0235340DBZ £277.00 pair (inc VAT)
The Tectus is a completely concealed hinge system for timber, steel or aluminium frames on unrebated residential and heavy duty doors. The sideways closed hinge body results in a homogeneous mortise appearance. A standout feature is that each hinge is 3D adjustable; side +/- 3.0mm, height +/- 3.0mm, compression +/- 1.0mm. CE & UL Certified.
Specifications:
Overall Length: 160mm
Width (door part): 28mm
Width (frame part): 28mm
Cutter Diameter: 24mm
Collar Ring Diameter: 30mm
Opening Angle: 180 Degrees
Load Capacity: 80kg - Based on 2 hinges per 1m x 2m door leaf
Specifications:
Overall Length: 160mm
Width (door part): 28mm
Width (frame part): 28mm
Cutter Diameter: 24mm
Collar Ring Diameter: 30mm
Opening Angle: 180 Degrees
Load Capacity: 80kg - Based on 2 hinges per 1m x 2m door leaf
