Tectus 645 3D Concealed Hinge Stainless Steel Look

Product Code: HWHI0235645SSS
£795.00 pair (inc VAT)

Available Options:

Size:

Finish:

Availability: Up To 4 Weeks
pair add to basket
  add to list

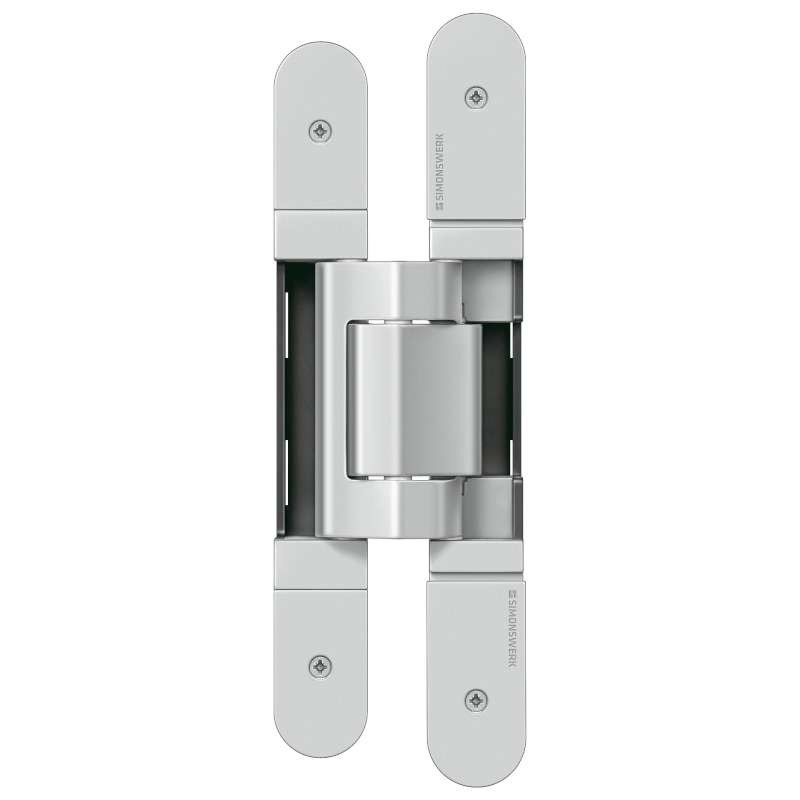

The Tectus is a completely concealed hinge system for timber, steel or aluminium frames on unrebated high performance heavy duty doors. The sideways closed hinge body results in a homogeneous mortise appearance. A standout feature is that each hinge is 3D adjustable; side +/- 3.0mm, height +/- 3.0mm, compression +/- 1.0mm. CE Certified. Application on steel frames is subject to special frame facings. Image shows the stainless steel look finish.
Specifications:
Length (door part): 260mm
Width (door part): 34mm
Length (frame part): 280mm
Width (frame part): 36mm
Cutter Diameter: 24mm
Collar Ring Diameter: 30mm
Opening Angle: 180 Degrees
Load Capacity: 300kg - Based on 2 hinges per 1m x 2m door leaf. Also the load capacities of the respective combined receiver have to be taken into consideration.
Product Code: HWHI0235645SSS
